    The River Suir Bridge is a cable-stayed bridge over the River Suir in Ireland. It was built as part of the N25 Waterford Bypass, and opened to traffic on the 19 October 2009, some ten months ahead of schedule. The Viking settlement at Woodstown was discovered during the project and the route of the southern approach roads was altered to preserve the site.

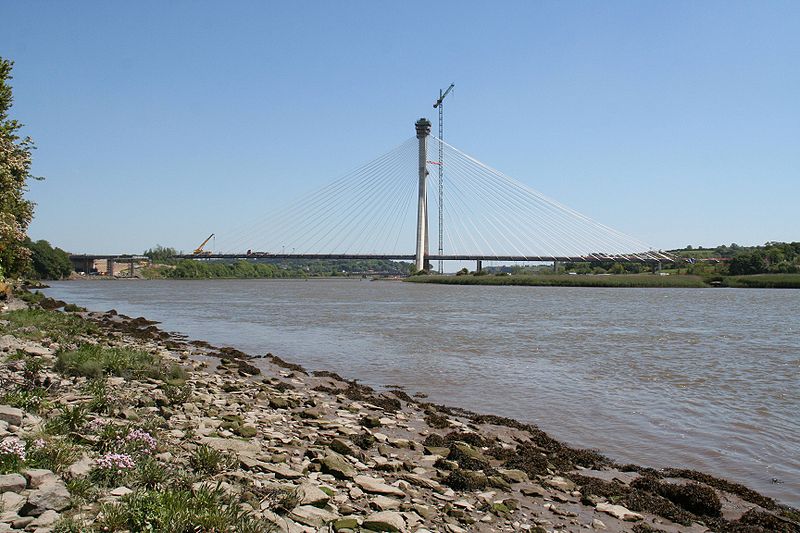

    Photo 1, River Suir Bridge, Ireland



    River Suir Bridge

    Carries                                         4 lanes

    Crosses                                         River Suir

    Locale                                          Waterford City

    Design                                          cable-stayed bridge

    Total length                                  465m

    Width                                           30.6m

    Height                                          112m

    Longest span                                 230m

    Number of spans                           5

    Vertical clearance                         14m

    Beginning date of construction      2006

    Completion date                           2009

    Opening date                               19 October 2009



    Photo 2, River Suir Bridge, Ireland



    Overview

    The cable-stayed bridge with its 112 metre tall tower, is a landmark structure for Waterford City and surrounding areas. The tower is constructed on the south side of the river. A series of “stay cables” fan out from the top of the tower to support the main span at intervals of about 10 metres. Corresponding cables fan to the back spans using the weight of the back span and anchor piles to balance the forces and “keep the tower standing straight”.



    Photo 3, River Suir Bridge, Ireland
