    The Kohlbrandbrucke is a cable-stayed bridge in the Wilhelmsburg quarter of Hamburg, Germany which connects the harbour area between the Norderelbe and Suderelbe branches of the Elbe river with motorway 7 (exit Waltershof). It bridges the Kohlbrand, which is part of the Suderelbe branch. It was opened on 9 September 1974.

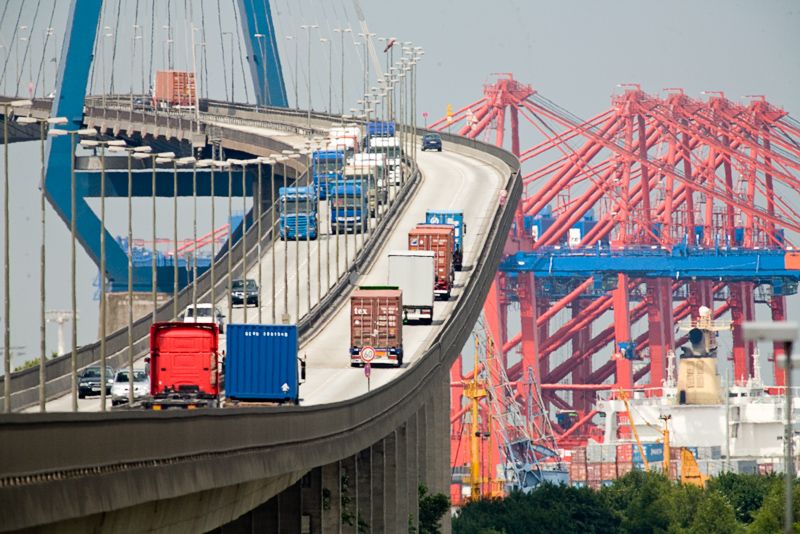

    Photo 1, Kohlbrandbrucke, Hamburg, Germany



    Kohlbrandbrucke

    Carries                                         Cars

    Crosses                                         Kohlbrand, part of the river Suderelbe

    Locale                                          Hamburg, Germany

    Design                                          Cable-stayed bridge

    Total length                                 3,618 m

    Width                                          17.5 m

    Height                                         135 m

    Longest span                                325 m

    Clearance below                          55 m above middle tide

    Beginning date of construction     1970

    Opened                                        9 September 1974

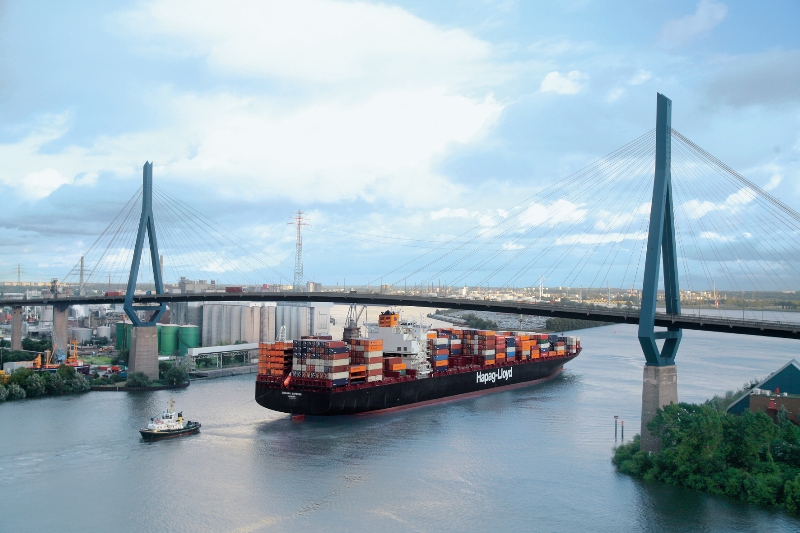

    Photo 2, Kohlbrandbrucke, Hamburg, Germany



    The bridge was designed by Hans Wittfoht and Egon Jux. It took 4 years to build it.

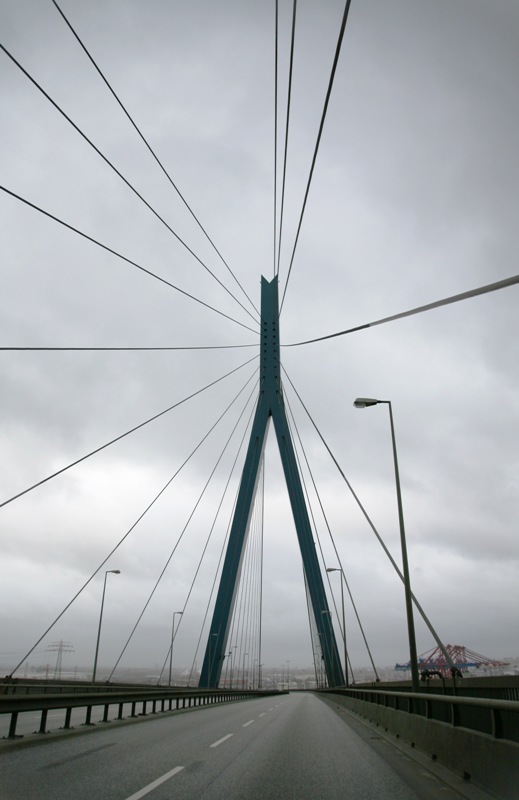

    Photo 3, Kohlbrandbrucke, Hamburg, Germany



    Since its opening the bridge has only twice been open to pedestrians, on the opening day 1974 and on its 30th birthday in 2004. The magnificent view over the city of Hamburg is however not completely limited to the drivers of cars and trucks. The bridge is on route of Hamburg's yearly UCI ProTour bicycle race Vattenfall Cyclassics. Quite a number of the amateurs participating in this race make a stop on top of the Kohlbrandbrucke.

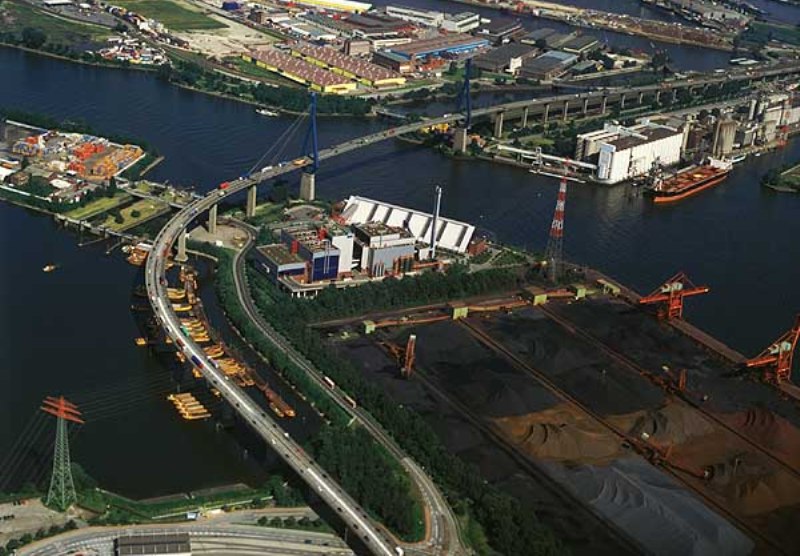

    Photo 4, Kohlbrandbrucke, Hamburg, Germany



    Technical data

    The bridge is made from about 81,000 cubic metres of concrete and 12,700 tonnes of steel. Each day, about 30,000 cars pass over the bridge. Its total cost being 160 million DM.

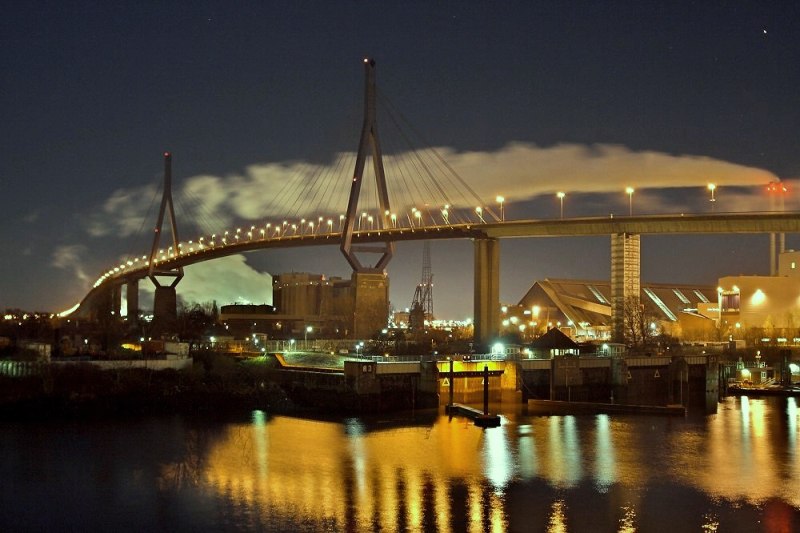

    Photo 5, Kohlbrandbrucke, Hamburg, Germany



    The bridge is made of 88 steel cables (each of a diameter of 10 centimetres). It is 3,940 metres long, the centre piece 325 m. It is carried by 75 pylons (the highest one of height 135 m) and reaches a height of 55 metres to allow ships pass underneath it, even at high tide. The road has an inclination of 4%.

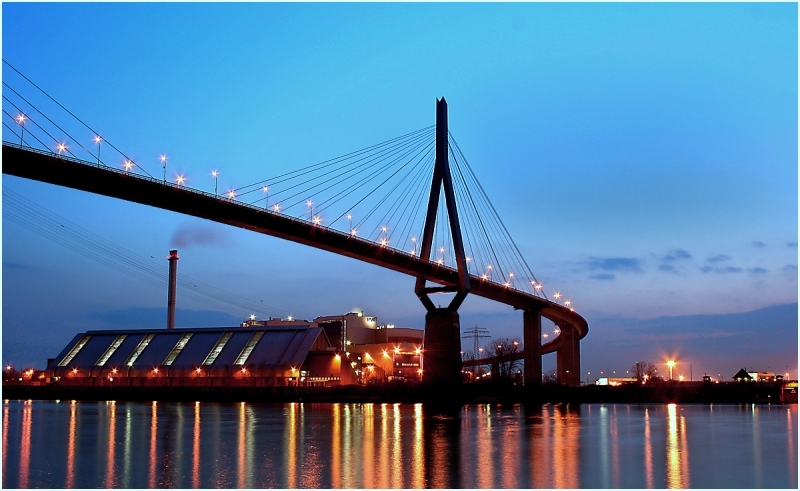

    Photo 6, Kohlbrandbrucke, Hamburg, Germany
